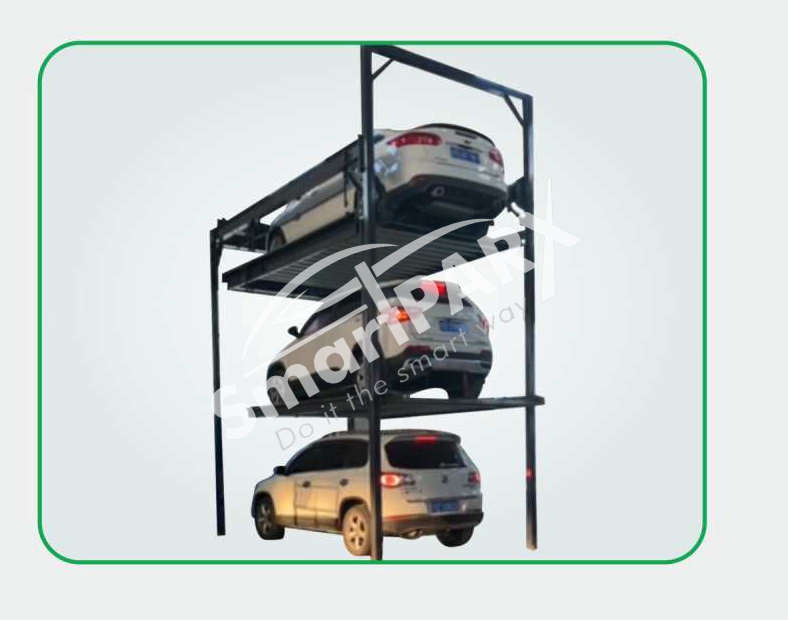

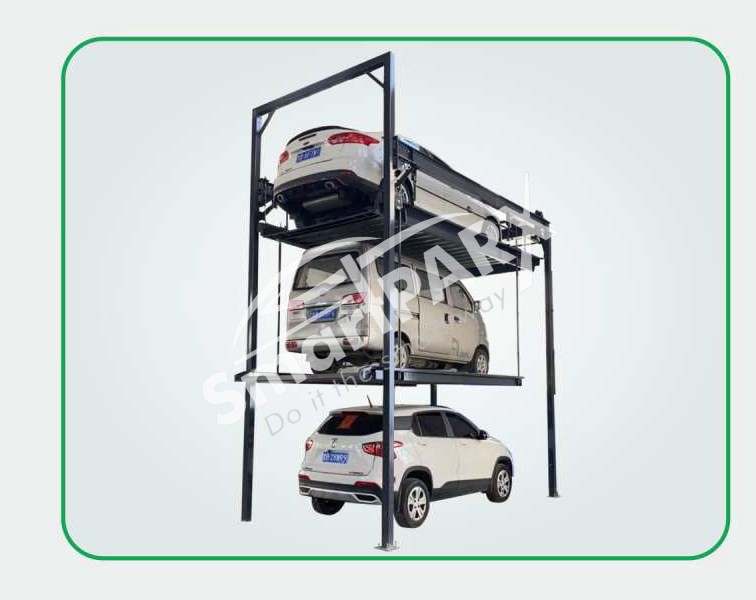

Three level Parking Stacker (3 Cars)
Triple Level Parking Specification :
| T Type | D Type | ||
|---|---|---|---|
| Size of cars | Length | ≤ 5300 mm | ≤ 5000 mm |
| Width | ≤ 1900 mm | ≤ 1850 mm | |
| Height | ≤ 1900 mm | ≤ 1900 mm | |
| Weight | ≤ 2500 mm | ≤ 2000 mm | |
- 1. Fastest
- 3. Heaviest
- 2. Silent Motorized System
- 4. High Lifting Capacity
Main Technical Parameters :
| No. | Name of part | Model | Brand | Remarks | |
|---|---|---|---|---|---|
| 1 | Lifting Motor | Gear Motor Power 2.2KW with Break | MCN | Weight < 2000 kg | |
| Gear Motor Power 3.7KW with Break | MCN | Weight s2500 kg | |||
| 2 | Safety & Protection Device | Anti-fall device | Four Points Mechanical Locking | ||
| Vehicle over length protection | CX412 | Sensor | Japan | ||
| Check the IF whether to have car | CX-412 | Sensor | Japan | ||
| Air switch | IC65N-C10A/4P | Schneider | Germany | ||
| Thermorelay | LRD12C 5-8A | Schneider | Germany | ||
| Alternating current conductor | LC1D09M7C | Schneider | Germany | ||
